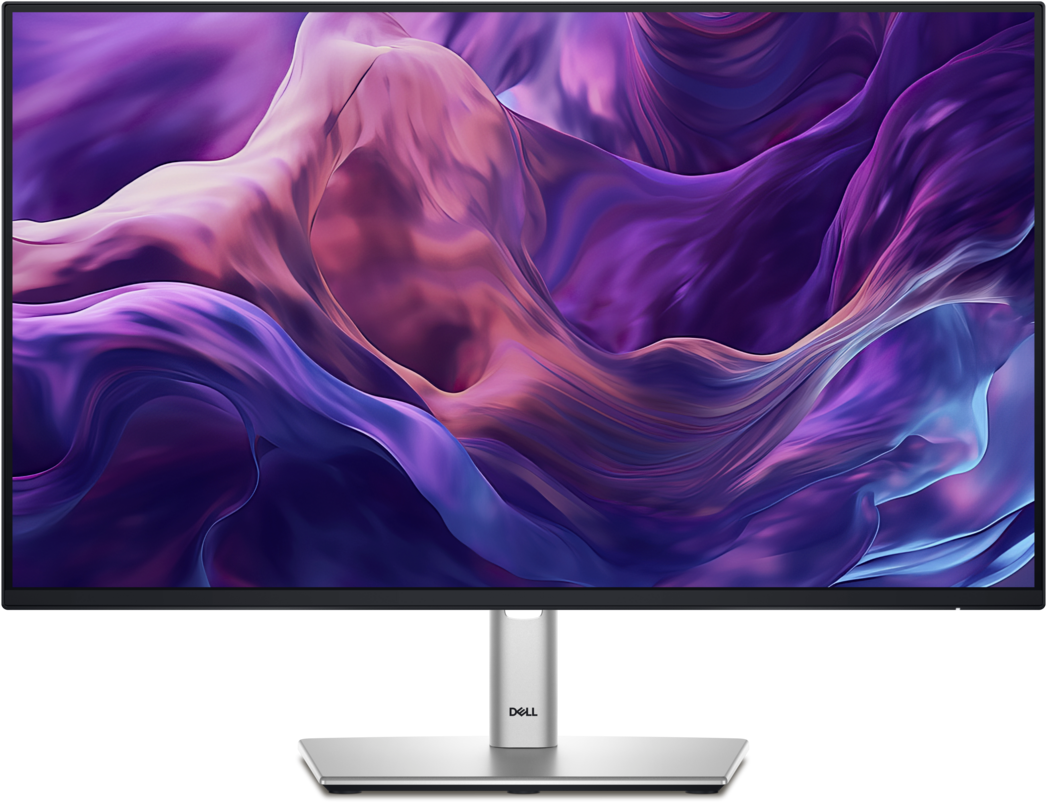

Dell Pro 24 Plus USB-C Hub Monitor - P2425HE
23.8" Full HD IPS Monitor with USB-C Hub and 90W Power Delivery
23.8" Full HD IPS monitor with a built-in USB-C hub — 90W power delivery, Gigabit Ethernet passthrough and USB 3.2 downstream ports for a single-cable laptop docking setup.
Quick Specifications
- Screen Size 23.8" diagonal
- Resolution 1920 x 1080 (Full HD), 16:9
- Panel Type In-Plane Switching (IPS)
- Refresh Rate 100 Hz
- Brightness 250 cd/m² (typical)
- Contrast Ratio 1,500:1 (typical)
Key Features
Single-Cable USB-C Docking
One USB-C cable delivers video, data and up to 90W of laptop charging — replacing a separate dock for most laptop setups.
Built-In Gigabit Ethernet
An RJ45 port passes wired network access through the monitor to the connected laptop over the same USB-C cable.
DisplayPort Multi-Stream (MST)
DisplayPort 1.4 with MST support allows daisy-chaining to a second display from a single host connection.
100Hz Full HD IPS Display
23.8" IPS panel with 100Hz refresh rate delivers smoother everyday motion and wide, consistent viewing angles.
TÜV-Certified Eye Comfort
4-star TÜV Eye Comfort certification with flicker-free backlighting reduces eye strain over long working sessions.
Specifications
| Screen Size | 23.8" diagonal |
| Resolution | 1920 x 1080 (Full HD), 16:9 |
| Panel Type | In-Plane Switching (IPS) |
| Refresh Rate | 100 Hz |
| Brightness | 250 cd/m² (typical) |
| Contrast Ratio | 1,500:1 (typical) |
| Response Time | 5ms (Fast mode) / 8ms (Normal mode), gray-to-gray |
| Color Gamut | 99% sRGB |

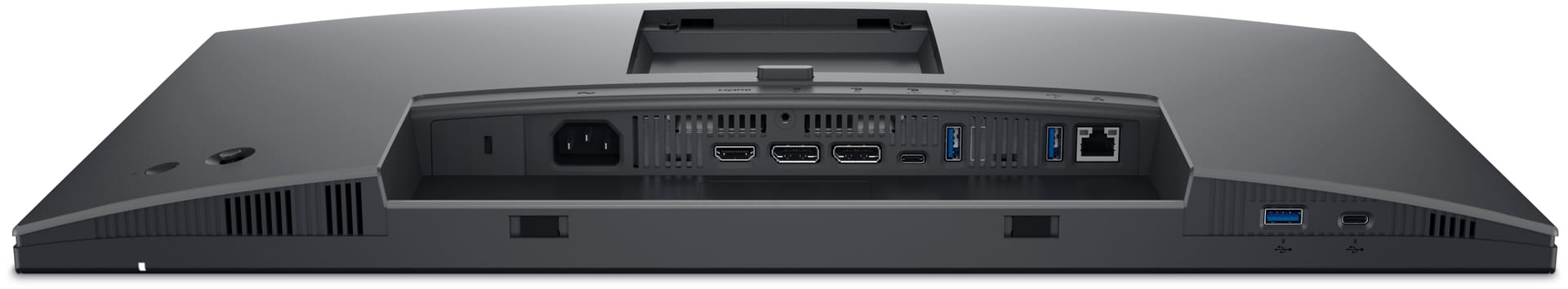

| USB-C Hub | 1x USB-C upstream (up to 90W Power Delivery), 1x USB-C downstream (15W PD), 3x USB 3.2 Gen1 Type-A downstream |
| Video / Network | DisplayPort 1.4 with MST, HDMI 1.4, RJ45 Gigabit Ethernet |

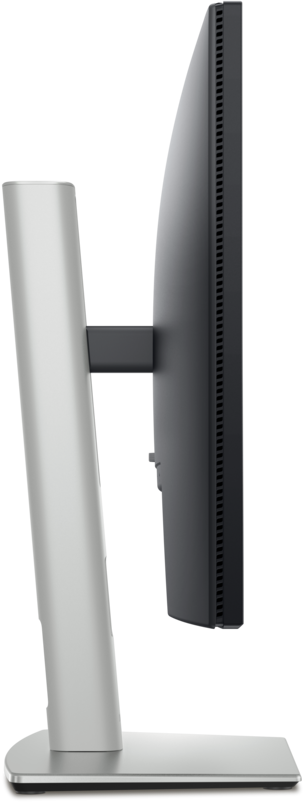

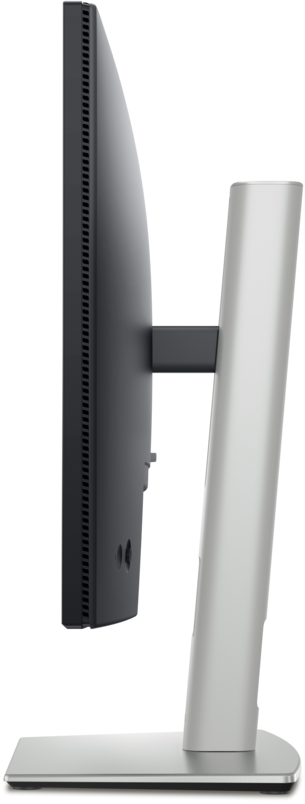

| Ergonomics | Height adjust up to 150mm, tilt -5°/+21°, swivel -45°/+45°, pivot -90°/+90° |

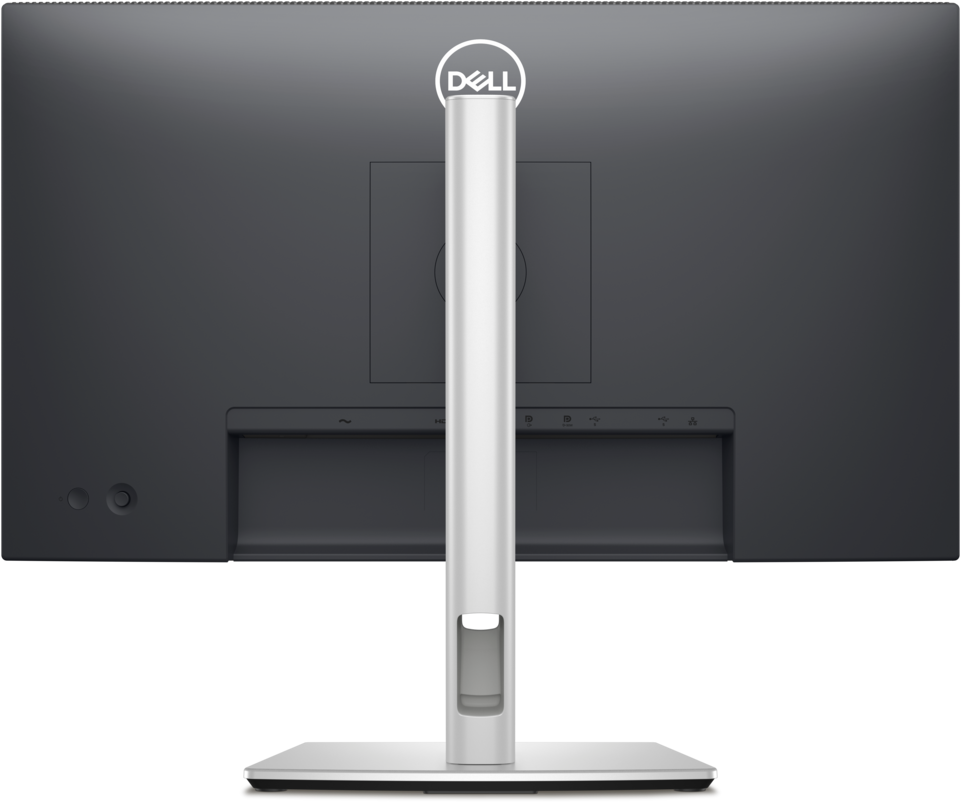

| VESA Mount | 100mm x 100mm |
| Power Consumption | 13.9 W typical, 180 W max (with USB-C charging load) |
| Weight (panel only) | 8.13 lbs |
| Warranty | 3-Year Limited Hardware Warranty with Advanced Exchange Service |
Benefits
- Replaces a separate USB-C dock for most laptop setups
- Up to 90W power delivery charges most business laptops
- Built-in Gigabit Ethernet for wired network access
- Complete ergonomic adjustability for shared desks
- 3-year warranty with advanced exchange service
Typical Applications
Common Use Cases
Full Technical Detail
Download the Full Datasheet
Complete specifications, integration reference and deployment guidance are provided in the product datasheet rather than on this page. It covers:
- Full display and ergonomics specifications
- USB-C hub, power delivery and Ethernet passthrough reference
- Power consumption and warranty terms
