Ubiquiti UniFi U7 Outdoor Access Point
All-Weather Wi-Fi 7 Access Point with Directional Coverage
Weatherproof (IPX6) Wi-Fi 7 access point with a directional internal antenna for long-range outdoor coverage, PoE+ powering and wall or pole mounting — built for courtyards, campuses and outdoor perimeters.
Quick Specifications
- Wi-Fi Standard Wi-Fi 7 (802.11be); backward compatible with Wi-Fi 6E/6/5
- 5 GHz Radio 2x2 MU-MIMO, up to 4.3 Gbps (BW240)
- 2.4 GHz Radio 2x2 MU-MIMO, up to 688 Mbps (BW40)

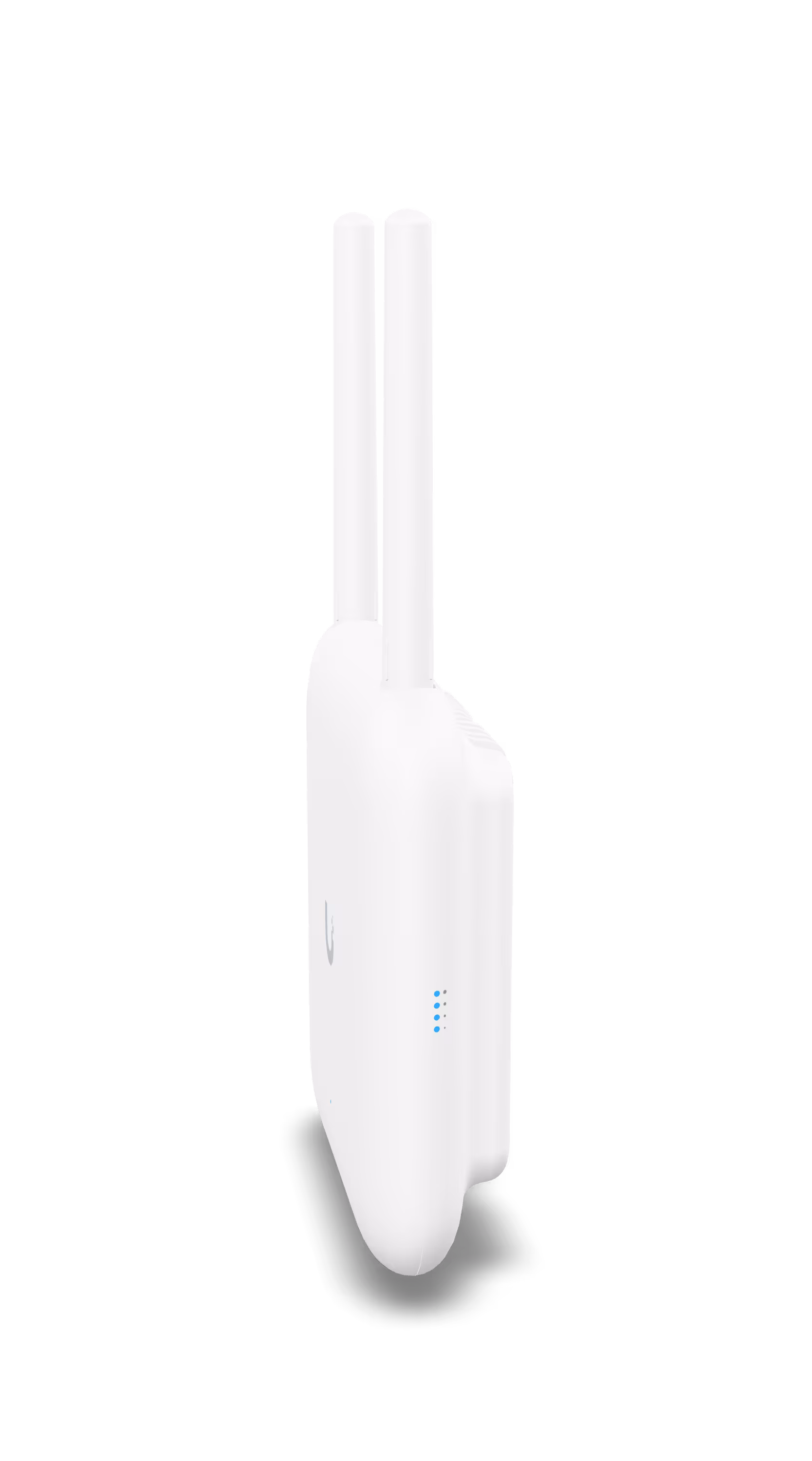

- Antenna Directional internal 12.5 dBi (45°x45°) 5GHz / 8 dBi (90°x90°) 2.4GHz; external omni mounts available
- Uplink 1x 2.5 GbE
- Power PoE+, 19W max
Key Features
All-Weather IPX6 Rating
Sealed enclosure rated IPX6, with a -30°C to 60°C operating range for outdoor deployment in exposed or extreme-temperature locations.
Directional Outdoor Coverage
A directional internal antenna concentrates signal for long-range, point-to-area outdoor coverage, with external omni mounting options.
Wide Coverage Footprint
Rated for up to 465 m² (5,000 sq ft) of coverage and 250+ concurrent clients per access point.
Single-Cable PoE+ Install
Powered over a 2.5GbE PoE+ uplink, with wall and pole mounts included for flexible outdoor placement.
Specifications
| Wi-Fi Standard | Wi-Fi 7 (802.11be); backward compatible with Wi-Fi 6E/6/5 |
| 5 GHz Radio | 2x2 MU-MIMO, up to 4.3 Gbps (BW240) |
| 2.4 GHz Radio | 2x2 MU-MIMO, up to 688 Mbps (BW40) |
| Antenna | Directional internal 12.5 dBi (45°x45°) 5GHz / 8 dBi (90°x90°) 2.4GHz; external omni mounts available |
| Uplink | 1x 2.5 GbE |
| Power | PoE+, 19W max |
| Weatherproofing | IPX6 |
| Coverage / Clients | Up to 465 m² (5,000 sq ft) coverage, 250+ concurrent clients |

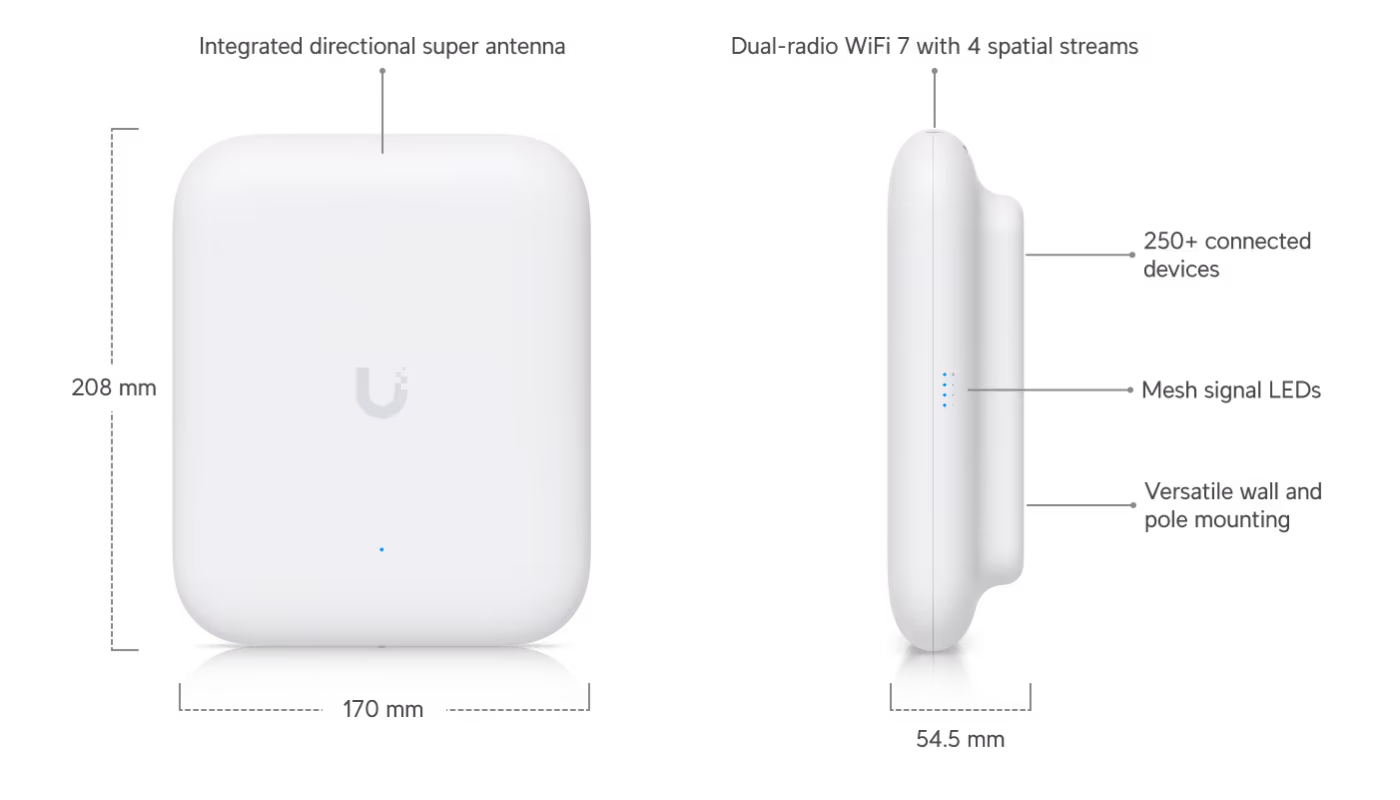

| Dimensions | 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1 in) |
| Weight | 1.2 kg (2.6 lb) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Management | UniFi Network application (cloud or self-hosted controller) |
Benefits
- IPX6 weatherproof rating for outdoor exposure
- Directional antenna for extended-range coverage
- Up to 465 m² (5,000 sq ft) coverage per unit
- Wide -30°C to 60°C operating range
- Wall and pole mounts included
- Centralised management via the UniFi Network application
Typical Applications
Common Use Cases
Full Technical Detail
Download the Full Datasheet
Complete specifications, integration reference and deployment guidance are provided in the product datasheet rather than on this page. It covers:
Why Unified Microsystems?
Unified Microsystems supplies and deploys UniFi outdoor access points as part of our structured cabling and managed Wi-Fi solutions, handling site design, UniFi Network onboarding and ongoing support, backed by regional stock availability and lead-time guidance.
