Networking
Ubiquiti UniFi Switch Pro 48 PoE
Layer 3 48-Port PoE++ Switch with 10G SFP+ Uplinks

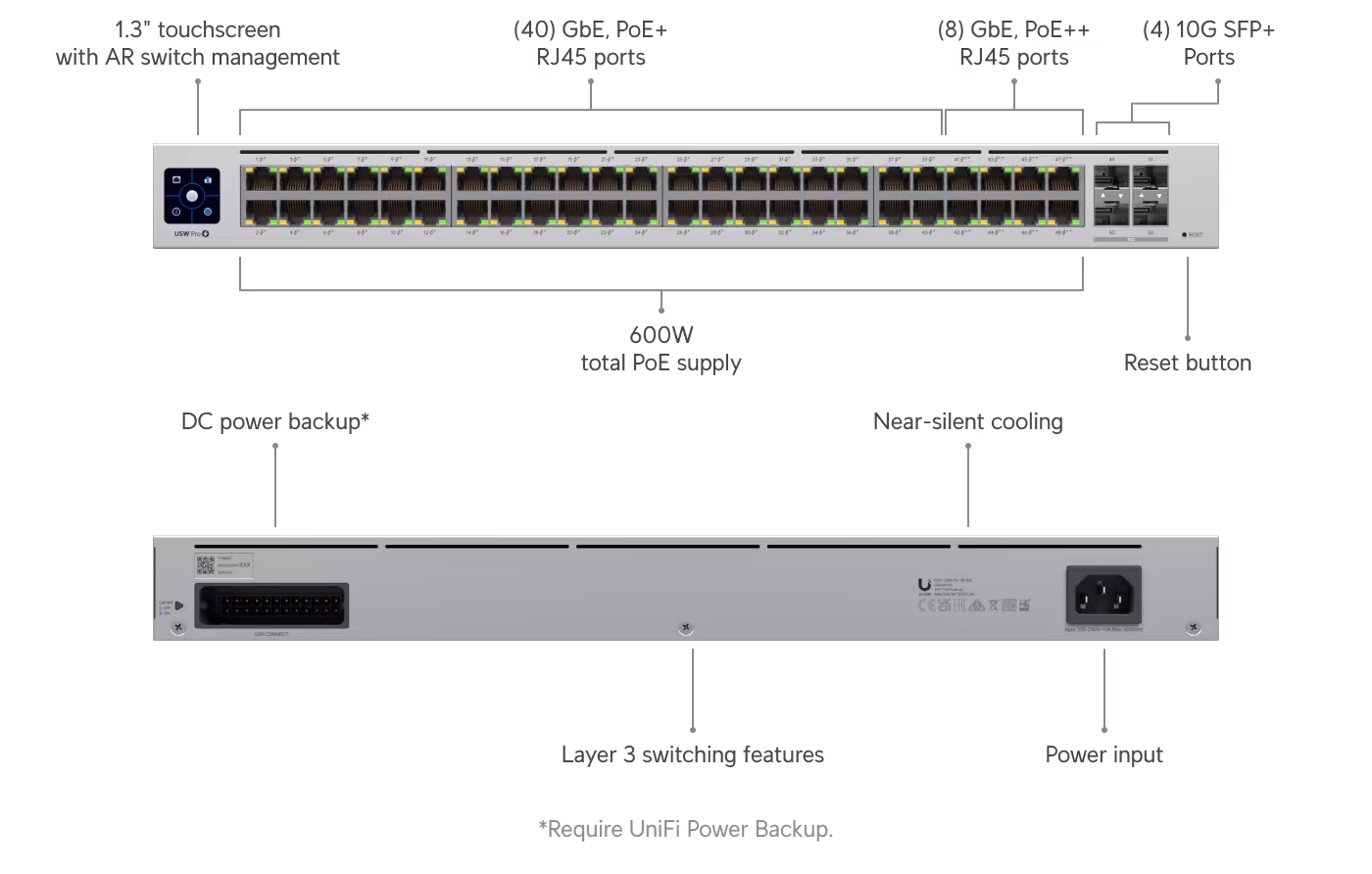

48-port Layer 3 Gigabit switch with up to 600W of PoE++ output across 40 PoE+ and 8 PoE++ ports, plus 4x 10G SFP+ uplinks and a front touchscreen display — built for larger PoE-heavy access layer deployments.
Quick Specifications
- Ports 48x RJ-45 1G (40 PoE+, 8 PoE++), 4x SFP+ 10G/1G, 1x RJ-45 management
- PoE Budget Up to 600W total (PoE 15.4W / PoE+ 32W / PoE++ 60W per port)
- Switching Capacity 176 Gbps
- Throughput 88 Gbps non-blocking, 131 Mpps forwarding rate
- Power Consumption 60W excluding PoE, 660W including PoE (internal 660W AC/DC supply)
- Dimensions 442 x 400 x 44 mm (17.4 x 15.7 x 1.7 in)
Key Features
600W PoE++ Budget
Powers 48 devices — cameras, phones and access points — with 40 PoE+ ports and 8 PoE++ ports rated up to 60W each.
10G SFP+ Uplinks
Four 10G/1G SFP+ ports provide fiber or DAC uplink connectivity to a core switch or aggregation layer.
Layer 3 Switching
Supports Layer 3 features including static routing and inter-VLAN routing for segmented network designs.
Touchscreen Front Panel
A 1.3-inch LCM touchscreen displays port status and basic diagnostics directly on the unit.
UniFi Network Management
Adopts into the UniFi Network application alongside UniFi access points, gateways and cameras for unified management.
Specifications
| Ports | 48x RJ-45 1G (40 PoE+, 8 PoE++), 4x SFP+ 10G/1G, 1x RJ-45 management |
| PoE Budget | Up to 600W total (PoE 15.4W / PoE+ 32W / PoE++ 60W per port) |
| Switching Capacity | 176 Gbps |
| Throughput | 88 Gbps non-blocking, 131 Mpps forwarding rate |
| Power Consumption | 60W excluding PoE, 660W including PoE (internal 660W AC/DC supply) |
| Dimensions | 442 x 400 x 44 mm (17.4 x 15.7 x 1.7 in) |
| Weight | 6.2 kg (6.3 kg with brackets) |
| Form Factor | 1U rack mount |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Management | UniFi Network application; 1.3-inch touchscreen LCM display |
Benefits
- Up to 600W of PoE++ power across 48 ports
- 176 Gbps switching capacity with 10G SFP+ uplinks
- Layer 3 routing support
- 1U rack-mount form factor
- Centralised management via the UniFi Network application
Typical Applications
Common Use Cases
Full Technical Detail
Download the Full Datasheet
Complete specifications, integration reference and deployment guidance are provided in the product datasheet rather than on this page. It covers:
Why Unified Microsystems?
Unified Microsystems supplies and deploys UniFi switches as part of our structured cabling and PoE infrastructure projects, handling PoE budget planning, network design and UniFi Network onboarding, backed by regional stock availability and lead-time guidance.
